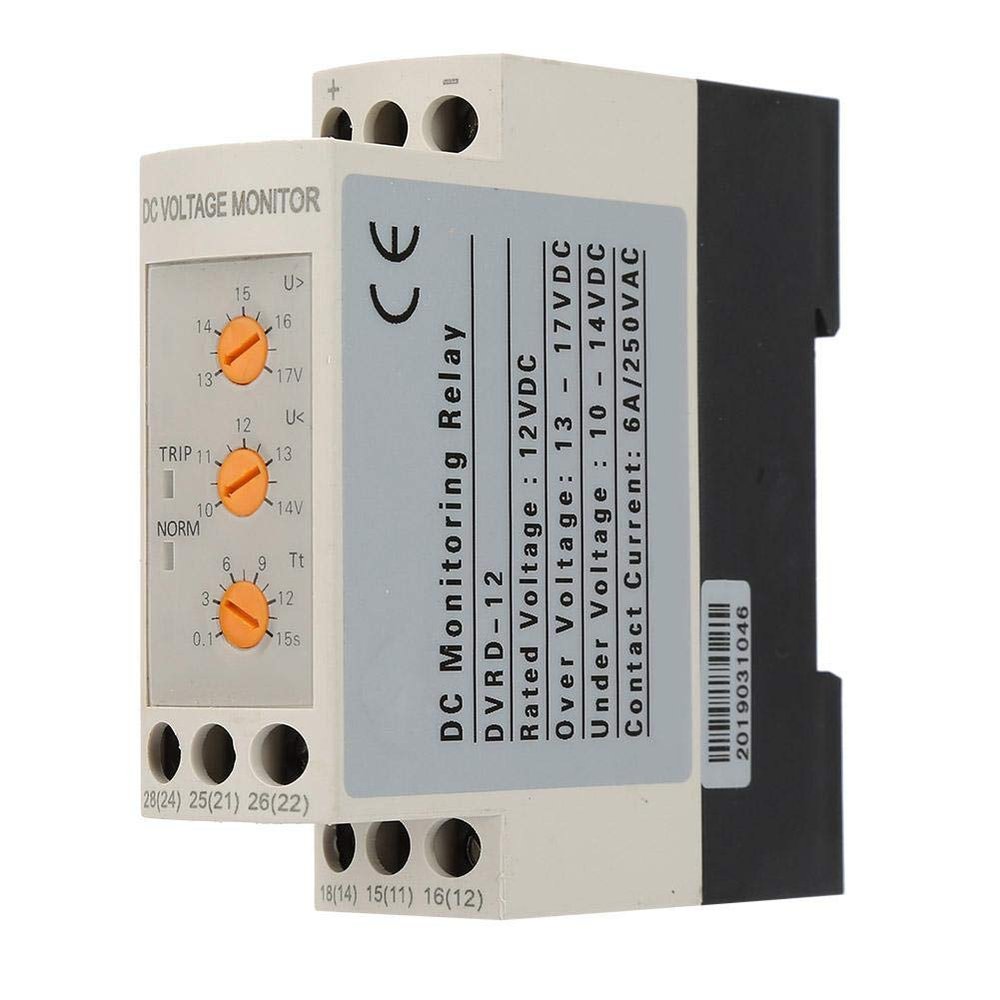

Akozon Voltage Monitoring Relay DC 12V/24V/36V/48V Over-Voltage and Under-Voltage Relay 35MM Rail(DC24V)

Description

• TYPICAL APPLICATIONS---The voltage monitoring relay is typically applied in dc motor, battery,UPS power supply, dc switchgear, dc panel, industrial control system
• PRODUCT NAME---Voltage Monitoring Relay; function: over voltage, under voltage; Rated voltage: DC 12V/24V/36V/48V; Overvoltage regulation range: 13-17v; Undervoltage adjustment range: 10-14v; capacity: 6A 250VAC (resistivity)
• MAIN FEATURES---The voltage monitoring relay is of 2 sets of normally open and normally closed contacts, 2 indicator lights indicate various working conditions, no additional auxiliary power supply is required
• REAL-TIME MONITORING---The voltage monitoring relay could achieve real-time monitoring of dc overvoltage and undervoltage faults, and over-voltage, under-voltage value, and action time can be adjusted
• 35MM RAIL---With 35mm rail and standard modular structure, the voltage monitoring relay is easy to install, easy to operate

Specification:
function: over voltage, under voltage
Model: DVRD - 12/24/36/48(Optional)
Rated voltage: DC 12V/24V/36V/48V(Optional)
Monitoring circuit: direct current circuit
function: over voltage, under voltage
Overvoltage regulation range: 13-17v
Undervoltage adjustment range: 10-14v
Action delay range: 0.1-15s
Display mode: normal, action 2 LED lights indicate the working status
form: 2 set of normally open and normally closed contacts
capacity: 6A 250VAC (resistivity)
Installation: 35mm rail
Overall dimension: 79 * 23 * 79mm / 3.1 * 0.9 * 3.1in
Weight: 200 g / 7.1 oz(approx.)

Package list:
1 x Overvoltage Undervoltage Protector
